[Bank 1/Sensor1]

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

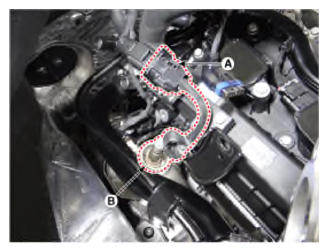

  2. Disconnect the connector (A), and then remove the sensor (B).
NOTE:
  • Note that the SST (Part No.: 09392-1Y100 or 09392-2H100) is useful when removing the heated oxygen sensor.
G13543331Courtesy of HYUNDAI MOTOR AMERICA
