Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the center fascia upper panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

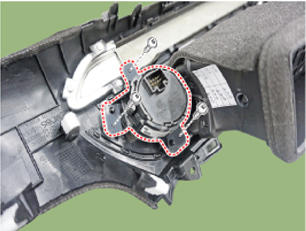

  3. Remove the start/stop button after loosening the mounting screw.
    G14178177Courtesy of HYUNDAI MOTOR AMERICA
