FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

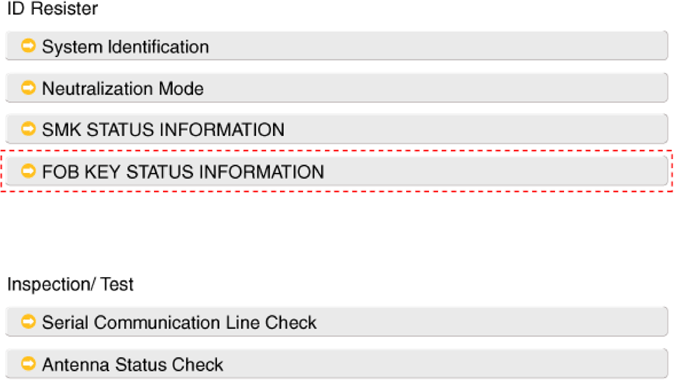

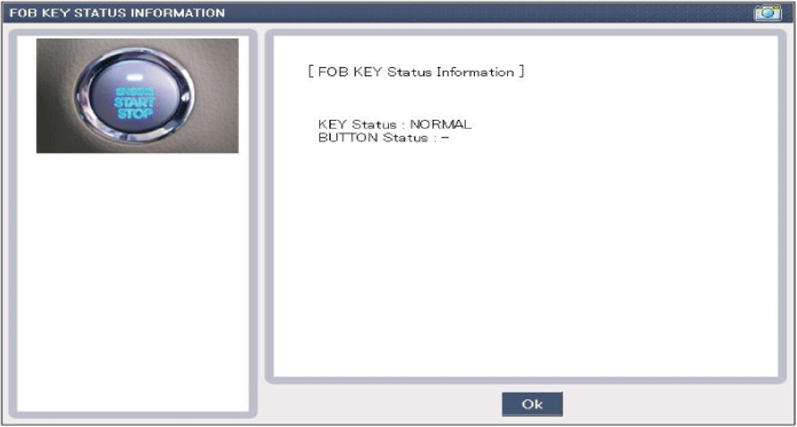

  2. After IG ON, select the "FOB KEY STATUS INFO".
    G14177751Courtesy of HYUNDAI MOTOR AMERICA
    G14177752Courtesy of HYUNDAI MOTOR AMERICA
