Integrated Body Control Unit (IBU)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad under cover RH.

    (Refer to Body - "CRASH PAD UNDER COVER ")

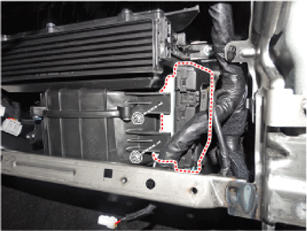

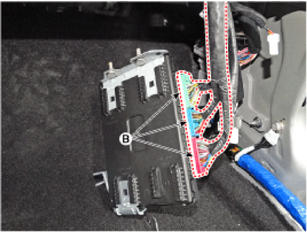

  3. Disconnect the connector (B) and then remove the IBU after loosening the mounting nuts.
    G14177741Courtesy of HYUNDAI MOTOR AMERICA
    G14177742Courtesy of HYUNDAI MOTOR AMERICA
