Driver Power Window Switch
CAUTION:
- Wrap the protective tape on the tool to disassemble with the screwdriver or remover.
- Use caution in keeping and handling during disassembling/assembling because it is easily contaminated with lubricant and oil.
- Use caution for the crash pad garnish and door trim upper garnish made of timber (Real wood) because they can be scratched or picked.
- Be careful not to scratch the door trim and other parts.
- Disconnect the negative (-) battery terminal.
- Remove the front door trim panel.
(Refer to Body - "FRONT DOOR TRIM ")

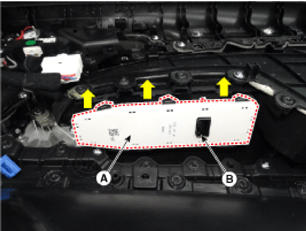

- Disconnect the DDM (Driver Door Module) connector (B) and then remove the power window switch (A).
