Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the fuel tank air filter.
(Refer to Emission Control System - "FUEL TANK AIR FILTER ")

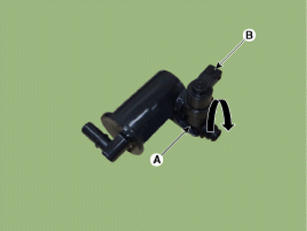

- Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow in the figure.
