Engine Control System - 2.0L
>>
E-CVVT Motor
>>
Schematic Diagrams
>>

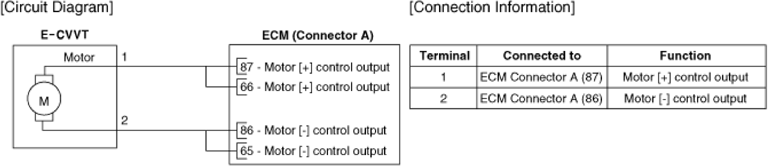

Circuit diagram
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit diagram: Notes
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
