Genesis
>>
2021
>>
G70 2.0T, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.0L
>>
Electronic Throttle Control (ETC) System
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

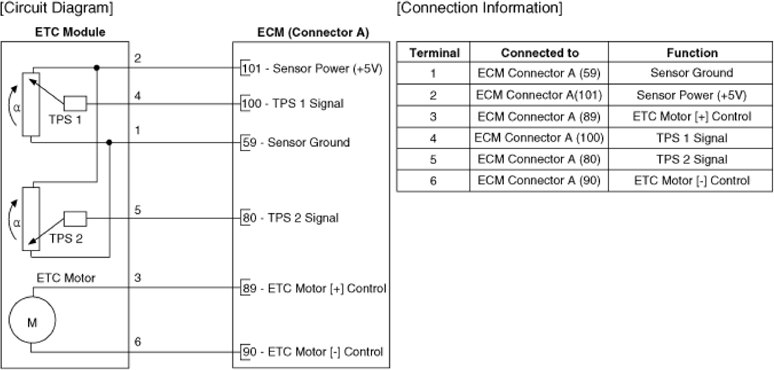

Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
