VIN Programming Procedure
VIN (Vehicle Identification Number) is a number with the vehicle's information. (Maker, Vehicle Type, Vehicle Line/Series, Body Type, Engine Type, Transmission Type, Model Year, Plant Location and so forth. For more information, refer to General Information - IDENTIFICATION NUMBER ). When replacing an ECM, the VIN must be programmed in the ECM. If there is no VIN in ECM memory, the fault code (DTC P0630) will be set.
CAUTION:
- Check carefully before writing the VIN as it cannot be changed once programmed.

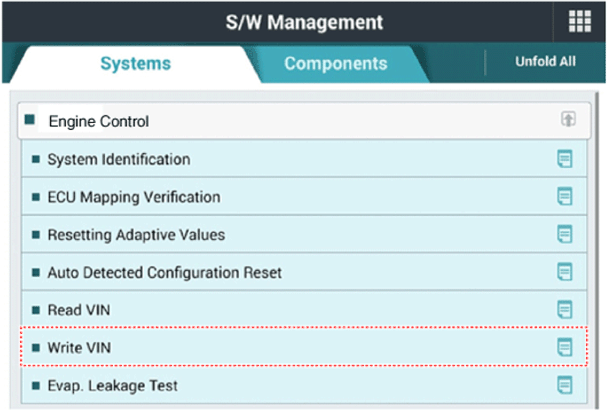

- Select "VIN Writing" function in "Vehicle S/W Management".

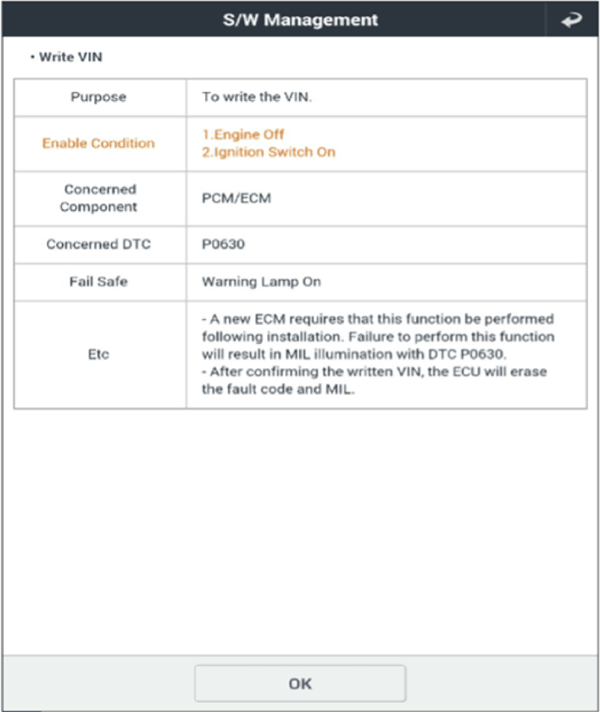

- Select "Write VIN" in "ID Register" menu.
- Enter the VIN.
CAUTION:
- Check carefully before writing the VIN as it cannot be changed once programmed.
