Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")
- Remove the cowl top cover assembly.
(Refer to Body - "COWL TOP COVER ")

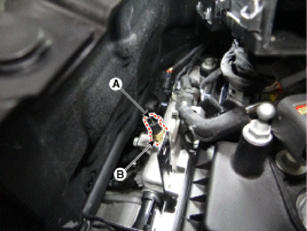

- Disconnect the engine coolant temperature sensor connector (A).
- Remove the engine coolant temperature sensor (B) from the water temperature control assembly.
