Bank 1/Sensor 2

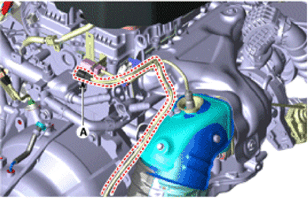

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Disconnect the connector (A).
    G14175611Courtesy of HYUNDAI MOTOR AMERICA

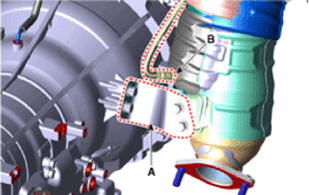

  3. Lift the vehicle.
  4. Remove the catalytic converter bracket (A).
  5. Remove the sensor (B).
    G14175612Courtesy of HYUNDAI MOTOR AMERICA
