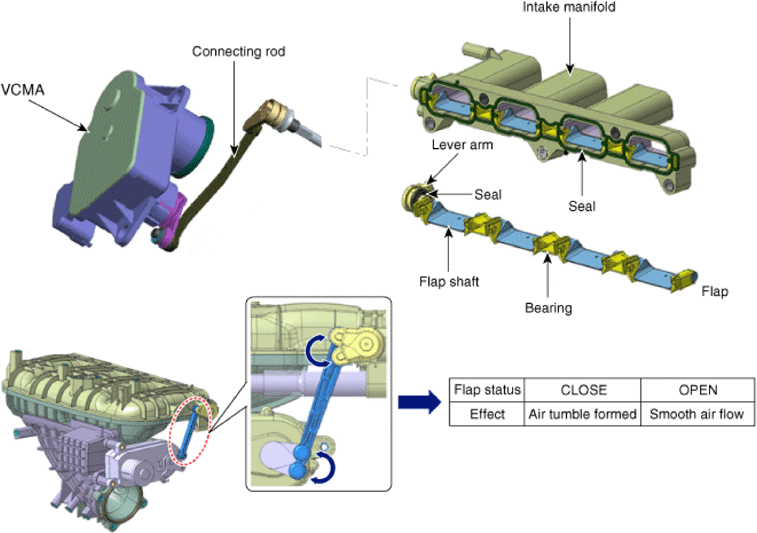

Components And Components Location: Components
ECM directly controls the actuator and the rotation of motor operates the VCM flap of intake manifold in link structure to create tumble in air. Mounted inside the actuator, the motor and position sensor sense the position of flap and send feedback to ECM to determine the current location of flap and detect abnormal operation due to adherence of foreign substance.
