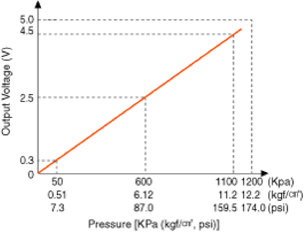

Fuel Pressure Sensor (FPS)

Pressure [KPa (kgf/cm2, psi)] Output Voltage (V) [Vref = 5V]
50 (0.51, 7.3) 0.3
600 (6.12, 87.0) 2.5
1100 (11.2, 159.5) 4.5
G14175515Courtesy of HYUNDAI MOTOR AMERICA
