Connector Assembly Status Test

  1. Remove the connector (A) and reinstall it.
    G14175408Courtesy of HYUNDAI MOTOR AMERICA

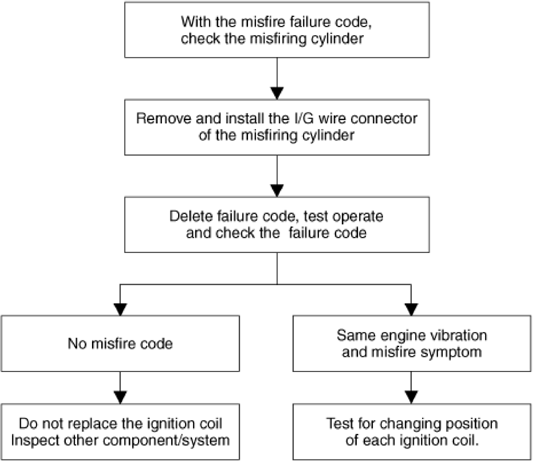

    G14175409Courtesy of HYUNDAI MOTOR AMERICA
