Repair Procedures: Removal

NOTE: In case of replacing the controller (ECU) and transfer case due to changing characteristics of the frictional materials inside the transfer case, it is necessary to check and enter the calibration data.
  • In case of replacing the transfer case assembly only, perform the clutch learning reset in the ECU.

    (Refer to 4 Wheel Drive (AWD) system - "REPAIR PROCEDURES ")

  • In case of replacing the ECU only, perform the clutch learning back-up and writing in the new transfer case ECU using GDS equipment.

    (Refer to 4 Wheel Drive (AWD) system - "REPAIR PROCEDURES ")

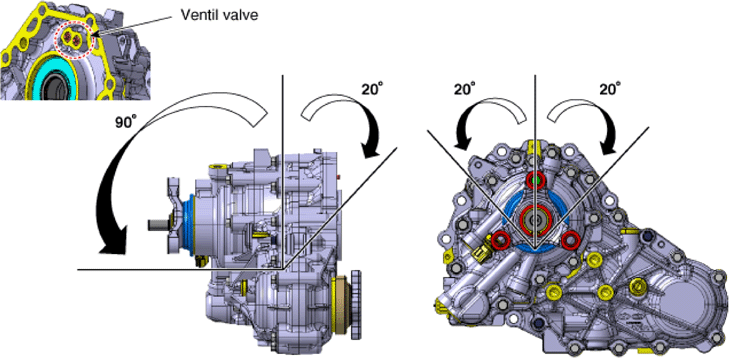

NOTE: Cautions in handling the transfer case
  1. Preventing the oil leaking
    • Even with the ventil valve installed, oil leaks from the collected oil during disassembling/assembling procedures in case of failure of keeping the horizontal position. Therefore, use caution when replacing the transmission.
      G14176313Courtesy of HYUNDAI MOTOR AMERICA
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

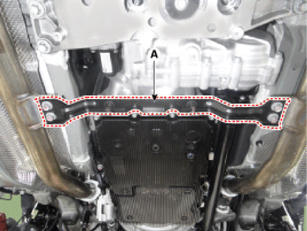

  3. Remove the front muffler stay (A).

    Tightening torque:

    29.4 - 39.2 N.m (3.0 - 4.0 kgf.m, 21.7 - 28.9 lb.ft)

    G14176314Courtesy of HYUNDAI MOTOR AMERICA

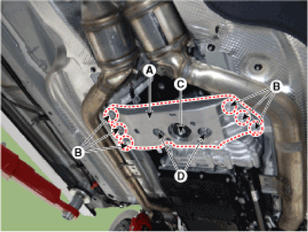

  4. Remove the transaxle cross member (A).

    Tightening torque:

    B: 63.7 - 73.5 N.m (6.5 - 7.5 kgf.m, 47.0 - 54.2 lb.ft)

    C: 49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb.ft)

    D: 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

    G14176315Courtesy of HYUNDAI MOTOR AMERICA

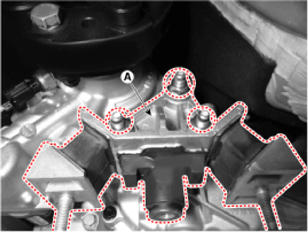

  5. Remove the transmission cross member bracket (A).

    Tightening torque:

    63.7 - 83.3 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb.ft)

    G14176316Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the propeller shaft.

    (Refer to Driveshaft and axle - "PROPELLER SHAFT ASSEMBLY ")

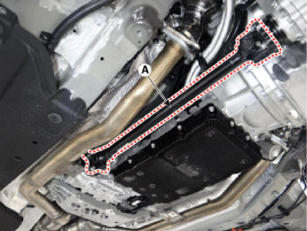

  7. Remove the front propeller shaft (A).

    Tightening torque:

    49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)

    G14176317Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    1. When retightening the propeller shaft mounting bolts after removing them, each bolt and washer must be placed in its original position and bolt insertion direction must be the same as before, so make marks not to allow the bolts and washers to be mixed up before removing the propeller shaft.
    2. If the position and direction of the propeller shaft mounting bolts and washers are reversed, it may cause vibration and noise at high vehicle speeds due to imbalance in the propeller shaft.

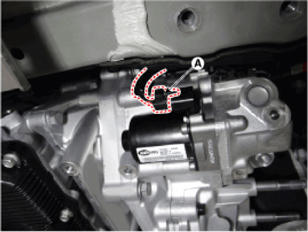

  8. Disconnect the actuator connector (A).
    G14176318Courtesy of HYUNDAI MOTOR AMERICA

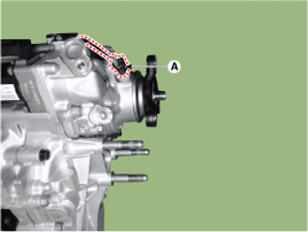

  9. Disconnect the pressure sensor connector (A).
    G14176319Courtesy of HYUNDAI MOTOR AMERICA

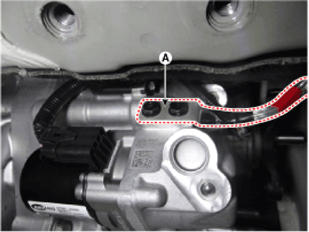

  10. Remove the ground line (A) from the transfer assembly.
    G14176320Courtesy of HYUNDAI MOTOR AMERICA

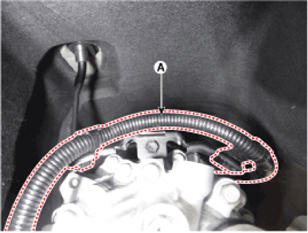

  11. Remove the wiring (A) from the transfer assembly.
    G14176321Courtesy of HYUNDAI MOTOR AMERICA

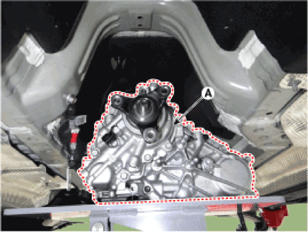

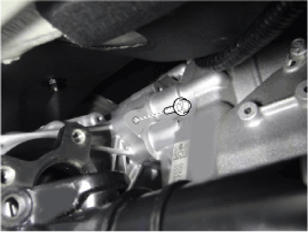

  12. Remove the transfer assembly mounting bolt and then removing the transfer assembly (A).

    Tightening torque:

    29.4 - 41.2 N.m (3.0 - 4.2 kgf.m, 21.7 - 30.4 lb.ft)

    G14176322Courtesy of HYUNDAI MOTOR AMERICA
    G14176323Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Must use a jack for safety.
