Repair Procedures: Installation

  1. To install, reverse the removal procedures.
    NOTE:

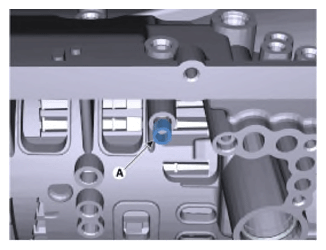

    • Check if the pipe seal (A) is inserted on the marked area before mounting the valve body assembly.
      G13540104Courtesy of HYUNDAI MOTOR AMERICA
  2. Refill the automatic transmission with fluid.

    (Refer to Automatic Transmission System - "AUTOMATIC TRANSMISSION FLUID (ATF) ")
