Repair Procedures: Installation

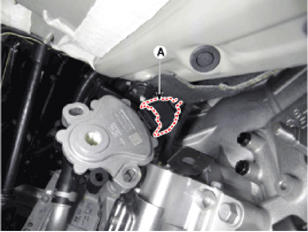

- Connect the parking switch connector (A).

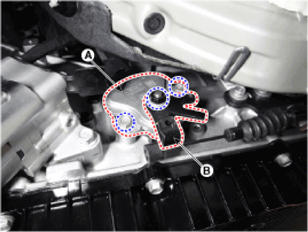

- Install the parking switch (A) and parking release lever (B).NOTE: Lightly tighten the bolts and nut so that necessary adjustments can be made.

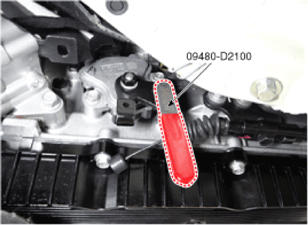

- Align the hole in the parking release lever with the "P" position hole of the parking switch and then insert the SST parking switch guide pin (09480-D2100).
- Tighten the parking switch mounting bolts (A).
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Tighten the parking release lever mounting nut (A).
Tightening torque :
13.7 - 17.7 N.m (1.4 - 1.8 kgf.m, 10.1 - 13.0 lb-ft)
- Remove the SST (09480-D2100)

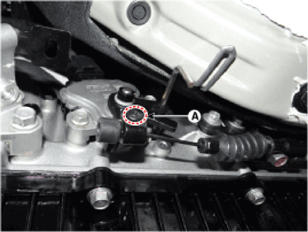

- Tighten the fastener (A) after installing the parking release cable.CAUTION:
- When install the parking release cable, replace the fastener with a new one.
