Repair Procedures: Removal

  1. Perform the oil pressure characteristics backup procedure using the KDS when replacing with a new TCM.

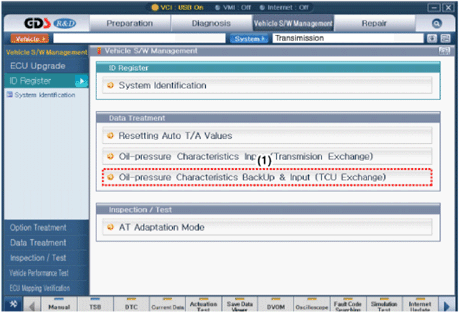

    G14176258Courtesy of HYUNDAI MOTOR AMERICA

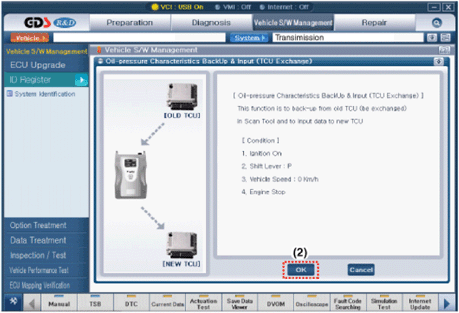

    G14176259Courtesy of HYUNDAI MOTOR AMERICA

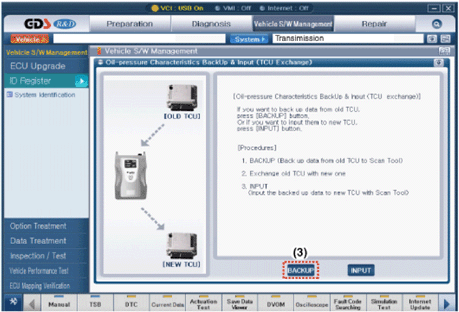

    G14176260Courtesy of HYUNDAI MOTOR AMERICA

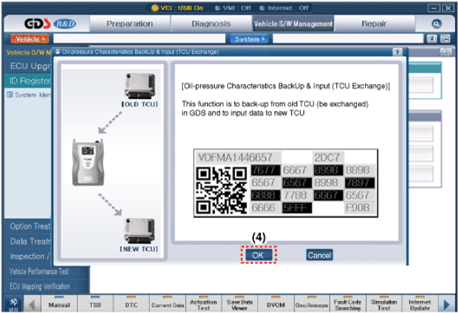

    G14176261Courtesy of HYUNDAI MOTOR AMERICA

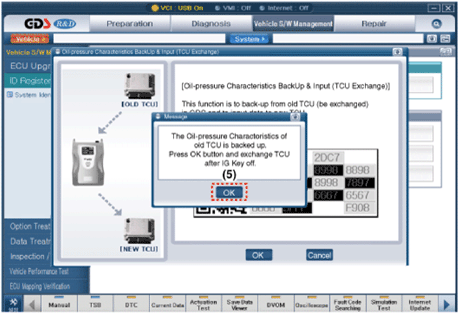

    G14176262Courtesy of HYUNDAI MOTOR AMERICA
    G14176263Courtesy of HYUNDAI MOTOR AMERICA
  2. Disconnect the TCM connector (A).
    G14176264Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the TCM (A) after loosening the nuts.
    G14176265Courtesy of HYUNDAI MOTOR AMERICA
