Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

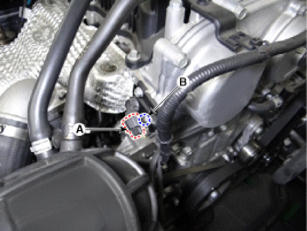

- Disconnect the CVVT oil control valve connector (A).
- Remove the installation bolt (B), and then remove the valve from the engine.
CVVT oil control valve mounting bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
[Bank 1/Exhaust]
