Front Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

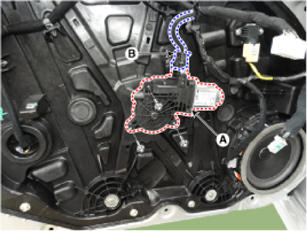

  3. Disconnect the connector (B) and then remove the motor (A).
    G14177992Courtesy of HYUNDAI MOTOR AMERICA
