VIN Programming Procedure

VIN (Vehicle Identification Number) is a number with the vehicle's information. (Maker, Vehicle Type, Vehicle Line/Series, Body Type, Engine Type, Transmission Type, Model Year, Plant Location and so forth. For more information, refer to General Information - IDENTIFICATION NUMBER ). When replacing an ECM, the VIN must be programmed in the ECM. If there is no VIN in ECM memory, the fault code (DTC P0630) will be set.

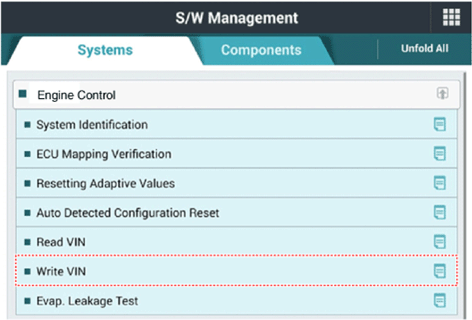

1. Select "VIN Writing" function in "Vehicle S/W Management".

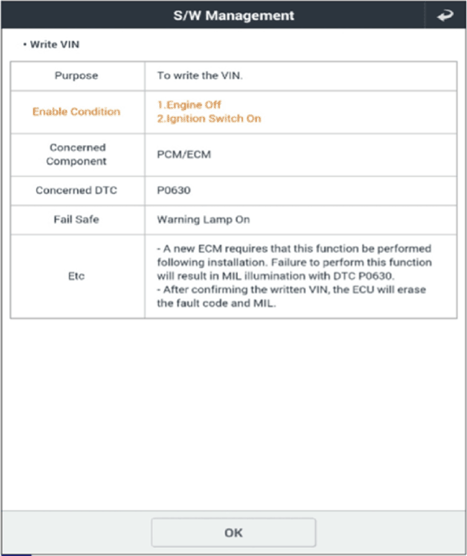

2. Select "Write VIN" in "ID Register" menu.

   Courtesy of HYUNDAI MOTOR AMERICA

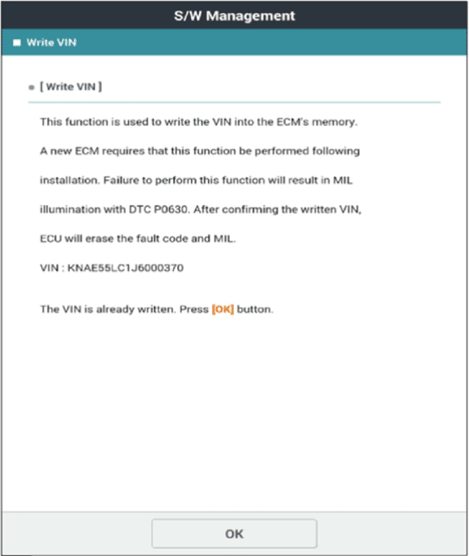

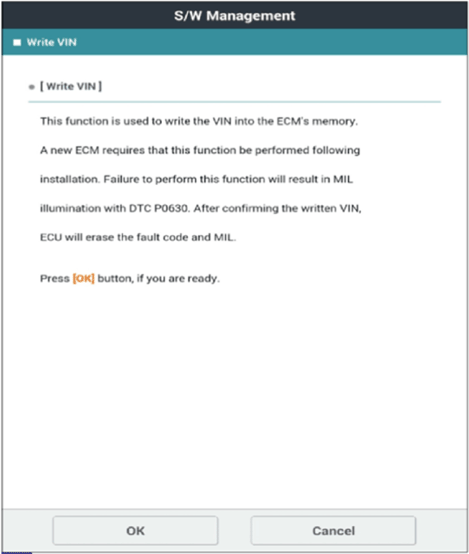

3. Enter the VIN.
   CAUTION:

   • Before entering the VIN, confirm again as it cannot be changed once programmed.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA
