Repair Procedures: Removal
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the delivery pipe & injector assembly.
(Refer to Fuel Delivery System - "DELIVERY PIPE ")

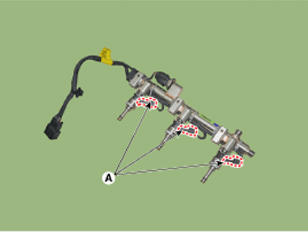

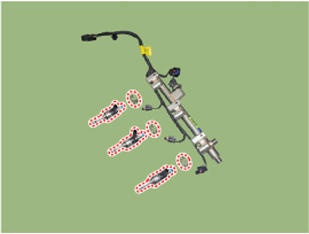

- Remove the injector from the delivery pipe after disconnect the connector (A).
