Knock Sensor #2 (Bank 2)

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the LH engine mounting support bracket.

    (Refer to Engine Mechanical System - "ENGINE MOUNTING ")

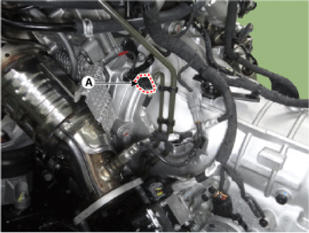

  3. Disconnect the knock sensor connector (A).
    G14179266Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the installation bolt, and then remove the protector.

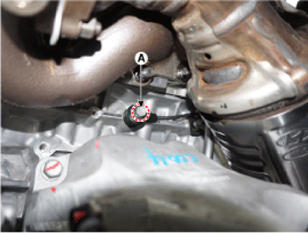

  5. Remove the installation bolt (A), and then remove the sensor from the cylinder block.
    G14179267Courtesy of HYUNDAI MOTOR AMERICA
