Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

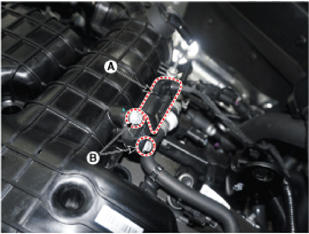

- Disconnect the manifold absolute pressure sensor connector (A).
- Remove the installation bolts (B), and then remove the sensor from the intake manifold.
Manifold absolute pressure sensor installation bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
