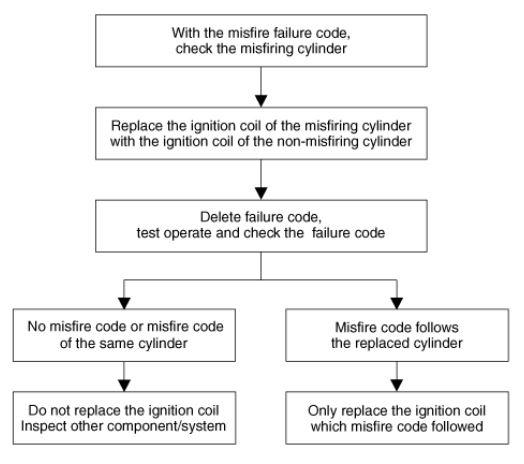

Test For Changing Position Of Each Ignition Coil

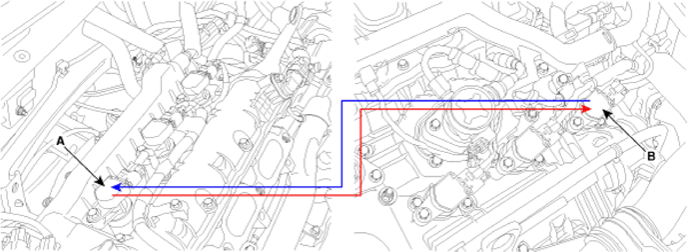

  1. Ignition coil w/misfire code
  2. Ignition coil w/o misfire code
NOTE:
  • Do not move with spark plug at the same time (move the ignition coil only)
G14179123Courtesy of HYUNDAI MOTOR AMERICA
G14179124Courtesy of HYUNDAI MOTOR AMERICA
