Repair Procedures: Inspection

  1. Turn ignition switch OFF.
  2. Disconnect the main connector (A).

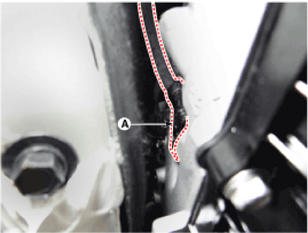

    G14179852Courtesy of HYUNDAI MOTOR AMERICA
  3. Measure the resistance between oil temperature sensor terminal (15) and terminal (16).
  4. Check that the resistance is within the specification.
    TRANSMISSION OIL TEMPERATURE SENSOR RESISTANCE SPECIFICATIONS

    Temp [(°C)°F] Resistance (kΩ)
    (-40) -40 139.5
    (-20) -4.0 47.4
    (0) 32.0 18.6
    (20) 68.0 8.1
    (40) 104.0 3.8
    (60) 140.0 1.98
    (80) 176.0 1.08
    (100) 212.0 0.63
    (120) 248.0 0.38
    (140) 284.0 0.25
    (160) 320.0 0.16
