Bank 2/Exhaust
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the engine and transaxle assembly.
(Refer to Engine Mechanical System - "ENGINE AND TRANSAXLE ASSEMBLY ")
- Remove the oil level gauge & pipe.
(Refer to Engine Mechanical System - "OIL LEVEL GAUGE & PIPE ")

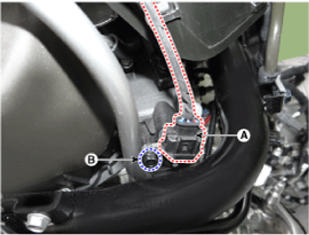

- Disconnect the camshaft position sensor connector (A).
- Remove the camshaft position sensor after loosening the mounting bolt (B).
