Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the fuel tank air filter.
(Refer to Emission Control System - "FUEL TANK AIR FILTER )

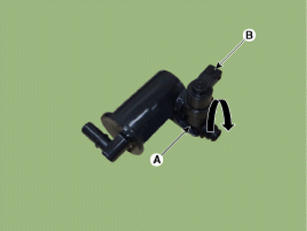

- Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating it in the direction of the arrow as shown in the illustration.
