Repair Procedures: Installation
CAUTION:
- Do not reuse the injector fixing clip.
CAUTION:
- Install the component to the specified torque.
- Note that internal damage may occur if the component is dropped. In this case, inspect the component before installation.
CAUTION:
- Apply engine oil to the injector O-ring.
- Do not reuse the injector O-ring.
CAUTION:
- Do not reuse the bolt.
CAUTION:
- When inserting the injector, be careful not to damage the injector tip.
CAUTION:

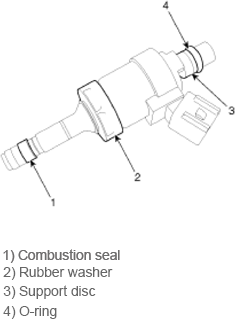

- Do not reuse the support disc.
- Do not reuse the injector rubber washer.
- When replacing the rubber washer, the rounded edge (A) should face the cylinder installation area and the angulated edge (B) should face the injector body.
CAUTION:
- Do not reuse the combustion seal.
- Install in the reverse order of removal.
