Description And Operation: Description: Notes
Power Trunk Lid (PTL) System: The system automatically opens and closes a vehicle's trunk lid and has the lid stop in a specific position using the interior switches (crash pad switch, push button switch inside the trunk, trunk lid outside handle) and remote control device. Power Trunk Module (PTM) transmits/receives vehicle information via CAN communication with ECUs with the aim of determining the trunk position (open or close) and performing self diagnosis.

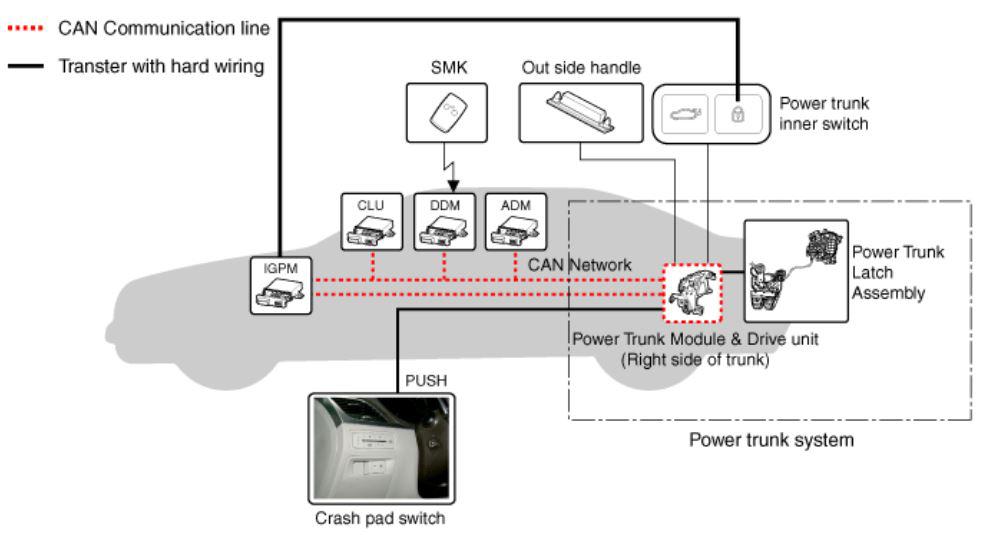

Component Location
