Home >> Genesis >> 2021 >> G80 2.5T Advanced, AWD >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Trunk Module >> Power Latch Assembly >> Components And Components Location >> Component

April 5, 2026: LEMON Manuals is launched! Read the announcement.

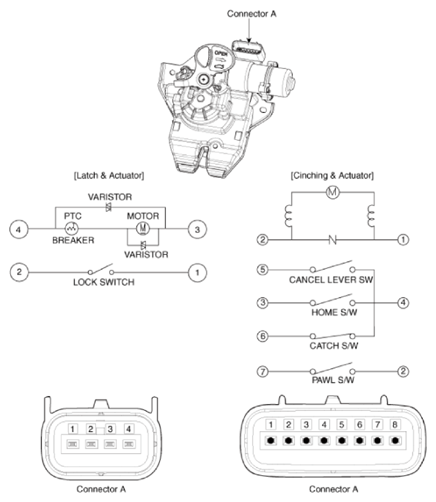

Components And Components Location: Component

G15554759

Courtesy of HYUNDAI MOTOR AMERICA
