Repair Procedures: Inspection

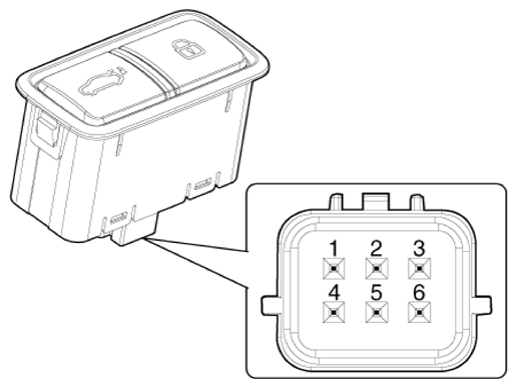

  1. Remove the trunk inner switch.

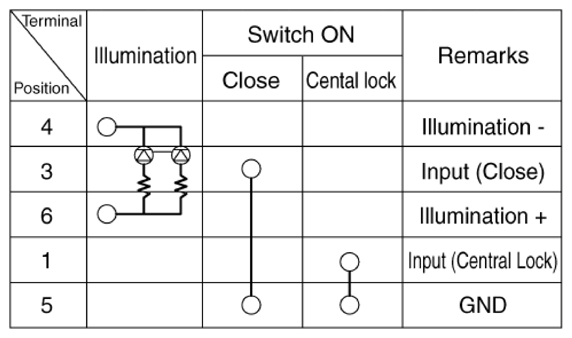

  2. Check for continuity between terminals of the trunk inner switch.
    G15554769Courtesy of HYUNDAI MOTOR AMERICA
    G15554770Courtesy of HYUNDAI MOTOR AMERICA
