Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk trim after opening the trunk, if necessary.

    (Refer to Body - "Trunk Lid Trim ")

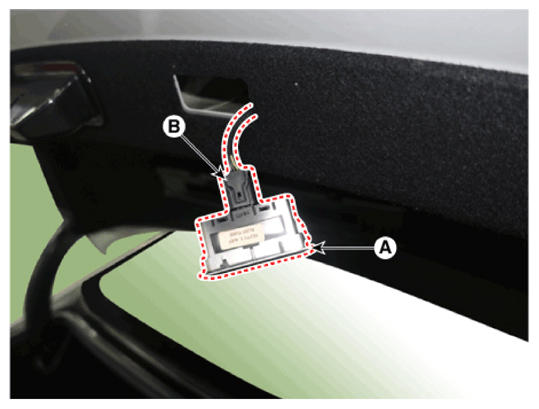

  3. Remove the trunk inner switch (A) after disconnecting the connector (B).
    G15554771Courtesy of HYUNDAI MOTOR AMERICA
    G15554772Courtesy of HYUNDAI MOTOR AMERICA
