Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the luggage side trim [LH].

    (Refer to Body - "LUGGAGE SIDE TRIM ")

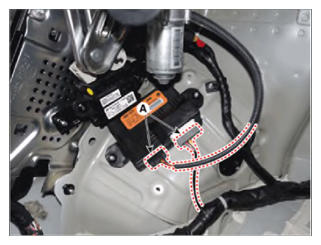

  3. Disconnect power trunk lid control unit connector (A).
    G15554780Courtesy of HYUNDAI MOTOR AMERICA

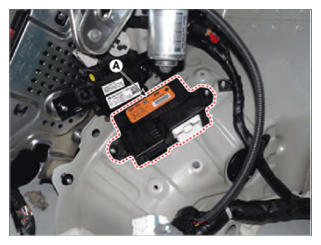

  4. Remove the power trunk lid control unit (A) after loosening mounting nuts.
    G15554781Courtesy of HYUNDAI MOTOR AMERICA
