Repair Procedures: Inspection
- Disconnect the negative (-) battery terminal.
- Remove the luggage side trim.
(Refer to Body - "LUGGAGE SIDE TRIM ")

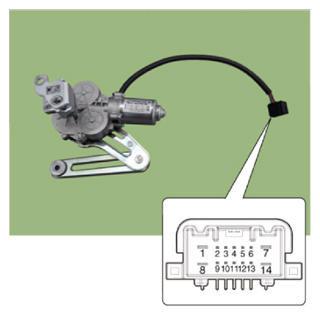

- Disconnect the motor connector.
- Connect the motor terminals directly to battery voltage (12V) and check that the motor operates smoothly. Next, reverse the polarity and check that the motor operates smoothly in the reverse direction. If the operation is abnormal, replace the motor.
Position Terminal 7 14 Close Clockwise (+) (-) Open Counter-clockwise (-) (+)
