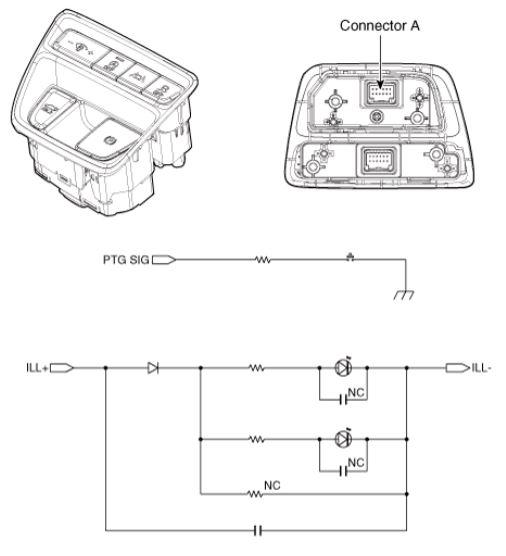

Components And Components Location: Components

Courtesy of HYUNDAI MOTOR AMERICA

Connector A	Pin	Description
Courtesy of HYUNDAI MOTOR AMERICA	1	Illumination [+)
	2	-
	3	EPB signal 1
	4	EPB signal 2
	5	EPS signal 3
	6	EPB signal 4
	7	-
	8	Power trunk lid signal
	9	-
	10	-
	11	Illumination (-)
	12	Ground
