Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

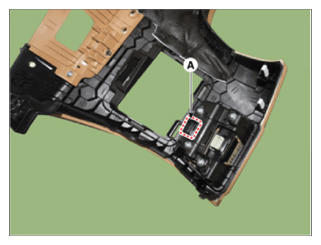

  3. Remove the crash pad lower panel switch (A) after loosening the mounting screws.
    G15554776Courtesy of HYUNDAI MOTOR AMERICA
