Front Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper. (Refer Body - "Front Bumper Cover")

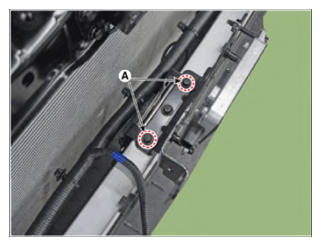

  3. Loosen the mounting bolts (A) and remove the front antenna bracket front the front bumper beam.
    G15550064Courtesy of HYUNDAI MOTOR AMERICA

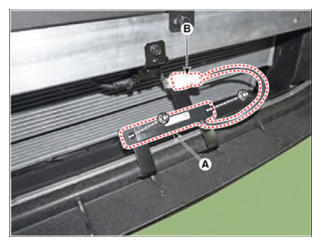

  4. Remove the front antenna (A) after loosening the mounting nuts and disconnecting the connector (B).
    G15550065Courtesy of HYUNDAI MOTOR AMERICA
