Trunk Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the luggage covering mat.

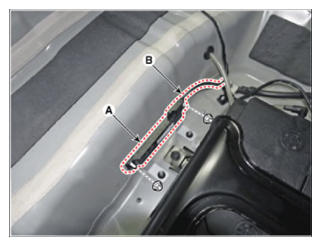

  3. Remove the trunk antenna (A) after loosening the mounting nuts and disconnecting the connector (B).
    G15550062Courtesy of HYUNDAI MOTOR AMERICA
