Switch Diagnosis

In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (Diagnostic tool).
The diagnostic system (Diagnostic tool) provides the following information.
1. Fault Code Searching: Checking failure and code number (DTC)
2. Data Analysis: Checking the system input/output data state
3. Actuation test: Checking the system operation condition
4. S/W Management: Controlling other features including system option setting and zero point adjustment

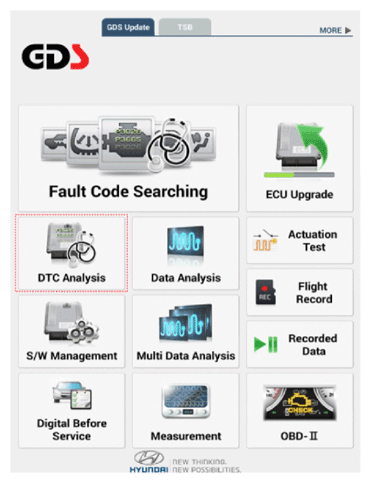

If diagnose the vehicle by Diagnostic tool, select "DTC Analysis" and "Vehicle".

Courtesy of HYUNDAI MOTOR AMERICA

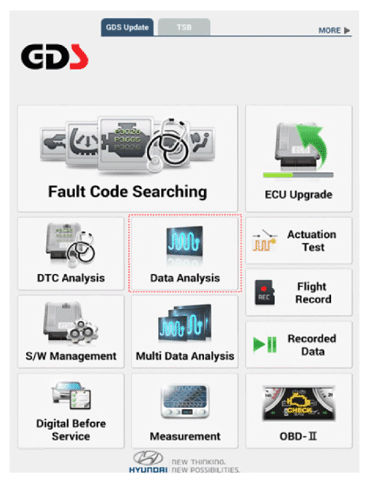

If check current status, select the "Data Analysis" and "Car model".

Courtesy of HYUNDAI MOTOR AMERICA

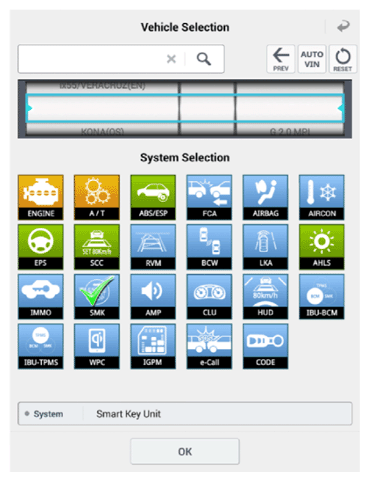

Select the SMK' to be checked in order to check the vehicle with the tester.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

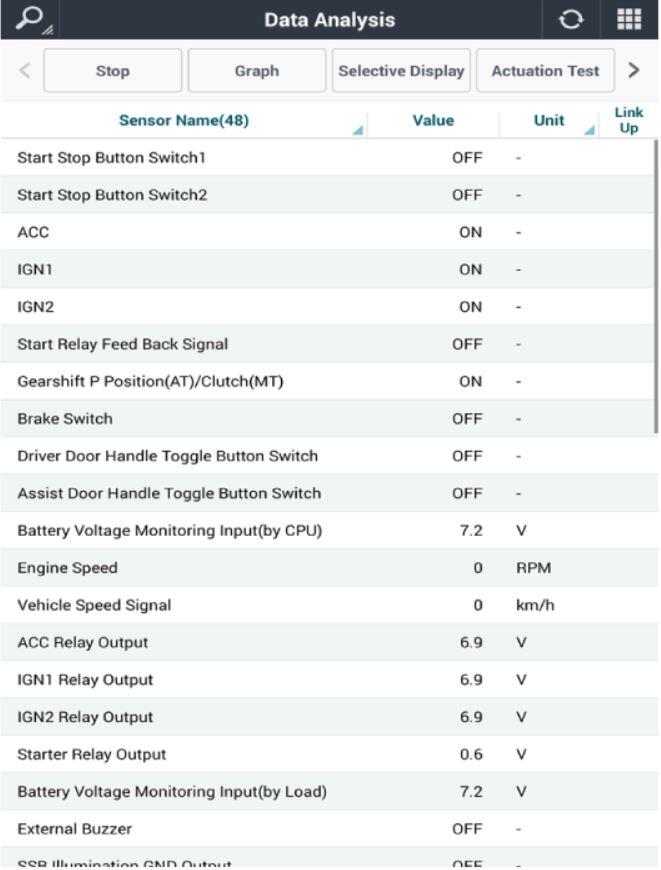

You can see the situation of each switch on scanner after connecting the "current data" process.

Display	Description
FL Toggle SW	ON: Push button is ON in the driver door handle.
FR Toggle SW	ON: Push button is ON in the assist door handle.
Tailgate open SW	ON: Tailgate button is ON.
Gear P Position	ON: Shift lever is P position.
IGN 1	ON: IGN switch is IG position.
ACC	ON: IGN switch is ACC position.
Brake SW	ON: Brake switch is ON.
