Smart key unit (Integrated Body control Unit)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing cover. (Refer to Body - "GLOVE BOX HOUSING COVER ")
  3. Loosen the IBU mounting bolt, nuts and remove the IBU Unit.
    G15550038Courtesy of HYUNDAI MOTOR AMERICA

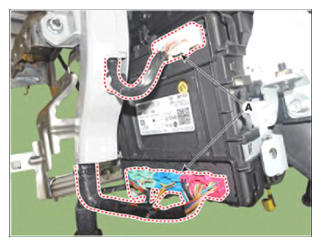

  4. Disconnect the IBU connectors (A).
    G15550039Courtesy of HYUNDAI MOTOR AMERICA
