Circuit Diagram

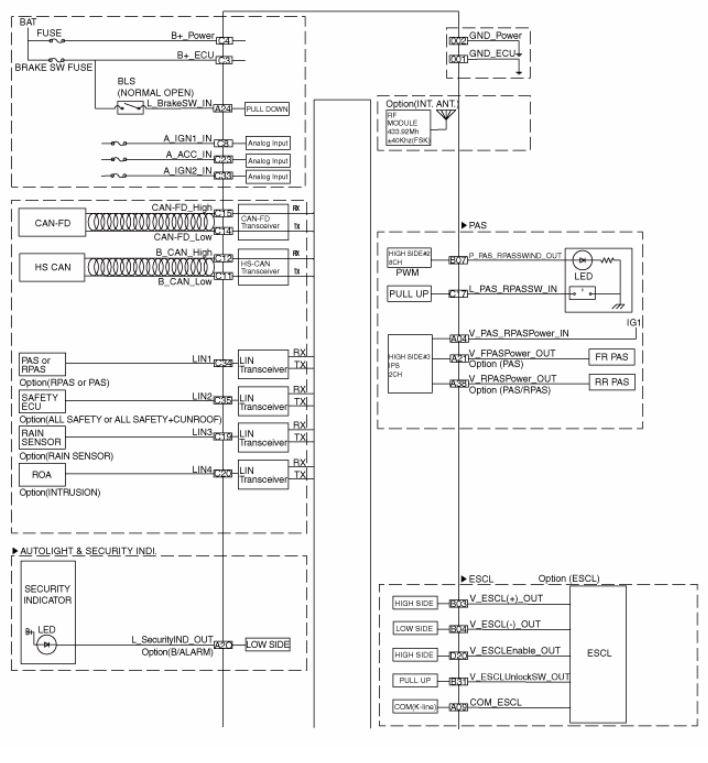

G15550082

Courtesy of HYUNDAI MOTOR AMERICA

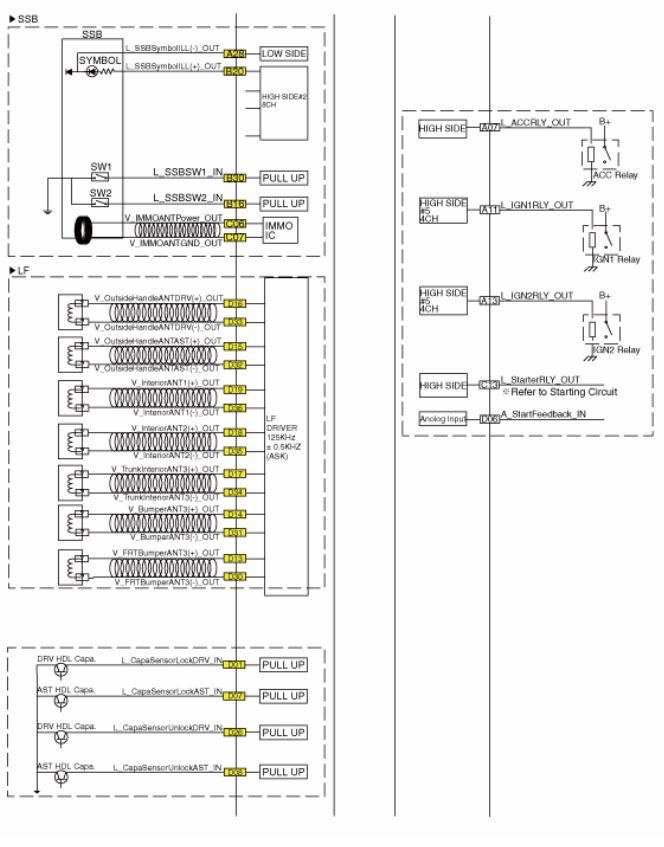

G15550083

Courtesy of HYUNDAI MOTOR AMERICA

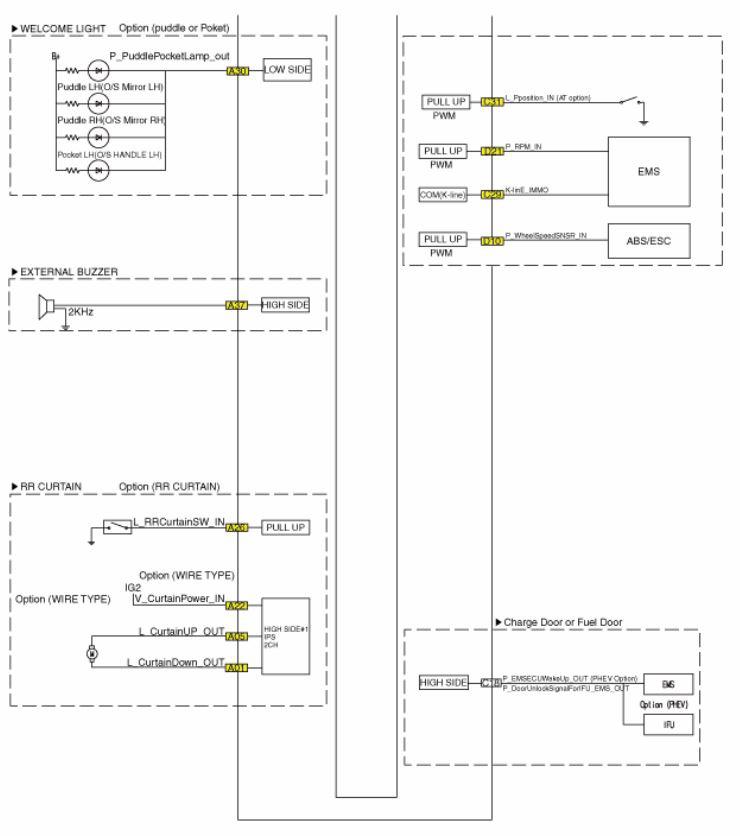

G15550084

Courtesy of HYUNDAI MOTOR AMERICA
