Front Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim. (Refer to Body - "FRONT DOOR TRIM ")

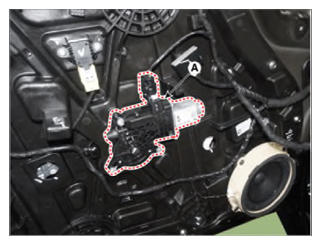

  3. Remove the front power window motor (A) after loosening the mounting bolts and disconnecting the connector.
    G15554706Courtesy of HYUNDAI MOTOR AMERICA
