Rear Power Window Motor

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear door trim. (Refer to Body - "REAR DOOR TRIM ")

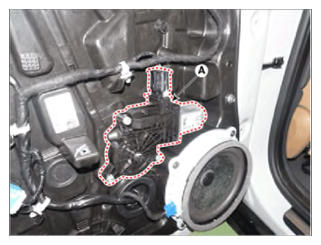

  3. Remove the rear power window motor (A) after loosening the mounting bolts and disconnecting the connector.
    G15554707Courtesy of HYUNDAI MOTOR AMERICA
