Power Window Main Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim. (Refer to Body - "FRONT DOOR TRIM ")

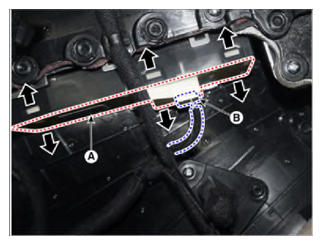

  3. Remove the Power window switch (A) after loosening the mounting screws and disconnecting the connector (B).
    G15554718Courtesy of HYUNDAI MOTOR AMERICA
