LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Genesis
>>
2021
>>
G80 2.5T Advanced, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Windows
>>
Power Window Switch
>>
Schematic Diagrams
>>
Circuit Diagram
>>
Power Window Sub Switch
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

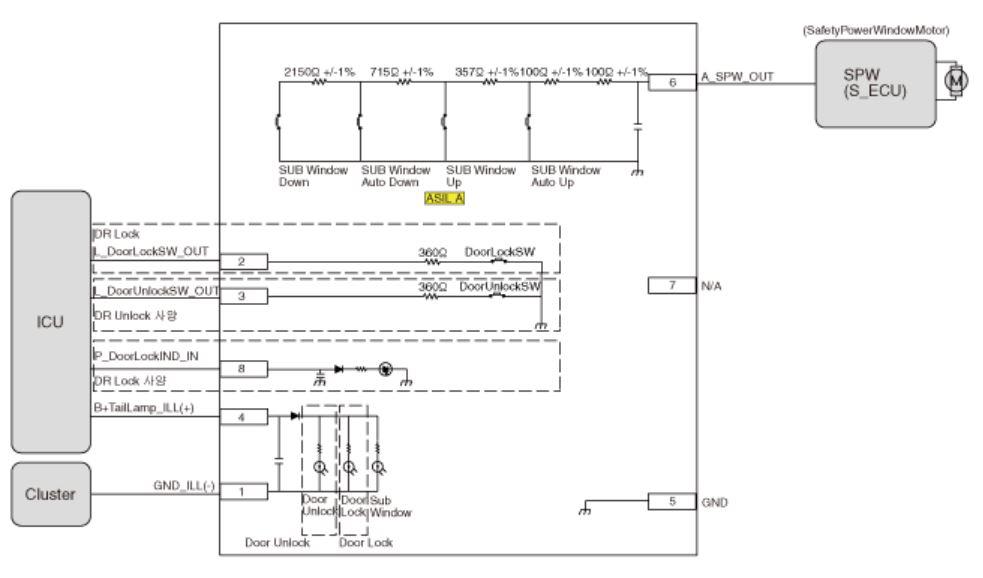

Power Window Sub Switch
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
