Repair Procedures: Removal
- Switch "OFF" the ignition and disconnect the battery negative (-) terminal.
- Remove the Engine Cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

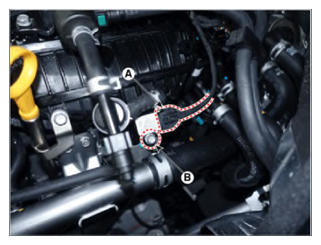

- Disconnect the manifold absolute pressure sensor connector (A).
- Remove the installation bolts (B), and then remove the sensor from the intake manifold.
Tightening torque:
9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)
