Connector assembly status test

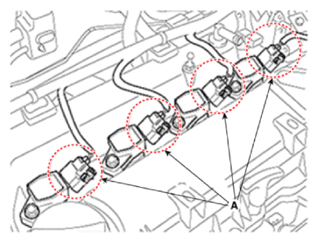

  1. Remove the connector (A) and reinstall It.
    G15547116Courtesy of HYUNDAI MOTOR AMERICA

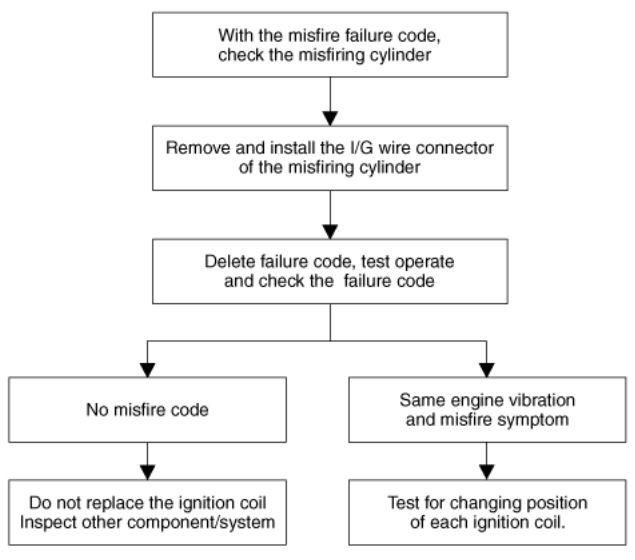

    G15547117Courtesy of HYUNDAI MOTOR AMERICA
