Removal and Installation

Remove the ignition coil.
(Refer to Ignition System - "IGNITION COIL ")

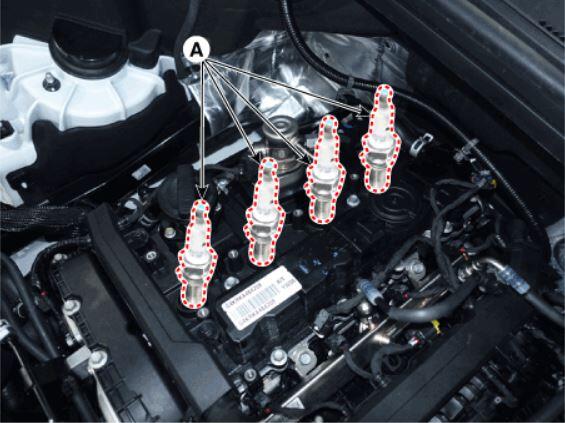

Using a spark plug wrench, remove the spark plug (A).
Tightening torque:

14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.9 - 18.0 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
