Main Function
- Full Retraction
Maintains a more safe posture by strongly rewinding the seat belt right before a crash.
[Operation Condition]
- When a frontal crash is detected by the radar
- When sudden braking
- When vehicle control function is disabled
- Dynamic Support
Stabilizes the driver from forward and centrifugal force by rewinding the seat belt during sudden braking or turning.
[Operation Condition]
- When sudden braking (Forward force)
- When sudden turning (Centrifugal force)
- When sliding in icy road
- Haptic Warning
Warns the driver with seat belt vibration when the vehicle gets out of its lane or any other dangerous situation occurs.
[Operation Condition]
- When a vehicle ahead is detected very near by the radar
- When the vehicle leaving the lane is detected by LDWS
- Slack Removal
If the seat belt isn't completely fastened, it will not work normally in a vehicle crash situation. In this case, this system completely fastens the seat belt by winding the belt slightly when the vehicle speed reaches 40 kph.
- Seat Belt Parking
After the seat belt is released, it returns the seat belt to its original position in 3 seconds by retracting the belt.
However, this function does not work when the belt has already returned to its original position.

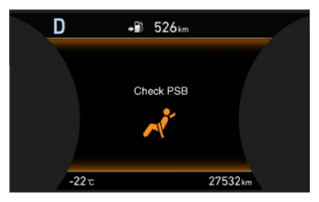

Pre-active Seat Belt (PSB) Warning Lamp
The Pre-active Seat Belt (PSB) warning lamp located on the cluster is to inform you that there is a problem with the system.
When the ignition switch is turned ON, it is normal if the lamp is turned on for 3 seconds. However, there may be a problem if the following conditions occurs.
- The lamp is turned on continuously when the ignition switch is in the ON position.
- The lamp turns on while driving.
